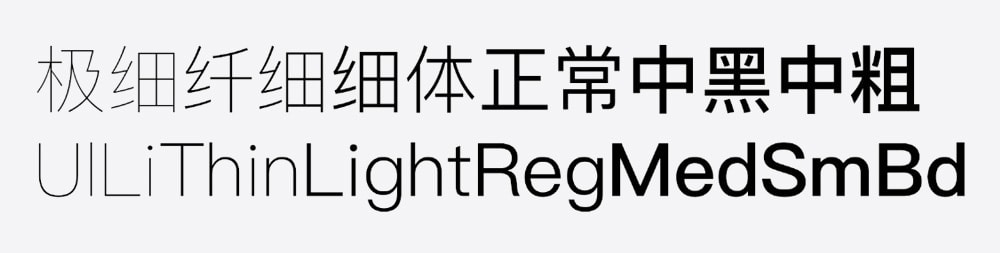

字体(苹方)
中文字体:PingFang SC
英文字体:SF UI Text 、SF UI Display
其中SF UI Text适用与小于19pt的文字,SF UI Display适用于大于20pt的文字
元素 | 字重 | 字号(pt) | 行距 | 字间距 |
---|---|---|---|---|
Title 1 | Light | 28pt | 34pt | 13pt |
Title 2 | Regular | 22pt | 28pt | 16pt |
Title 3 | Regular | 20pt | 24pt | 19pt |
Headline | Semi-Bold | 17pt | 22pt | -24pt |
Body | Regular | 17pt | 22pt | -24pt |
Callout | Regular | 16pt | 21pt | -20pt |
Subhead | Regular | 15pt | 20pt | -16pt |
Footnote | Regular | 13pt | 18pt | -6pt |
Caption 1 | Regular | 12pt | 16pt | 0pt |
Caption 2 | Regular | 11pt | 13pt | 6pt |
元素 | 字号(pt) | 字重 | 字距(pt) | 类型 |
---|---|---|---|---|

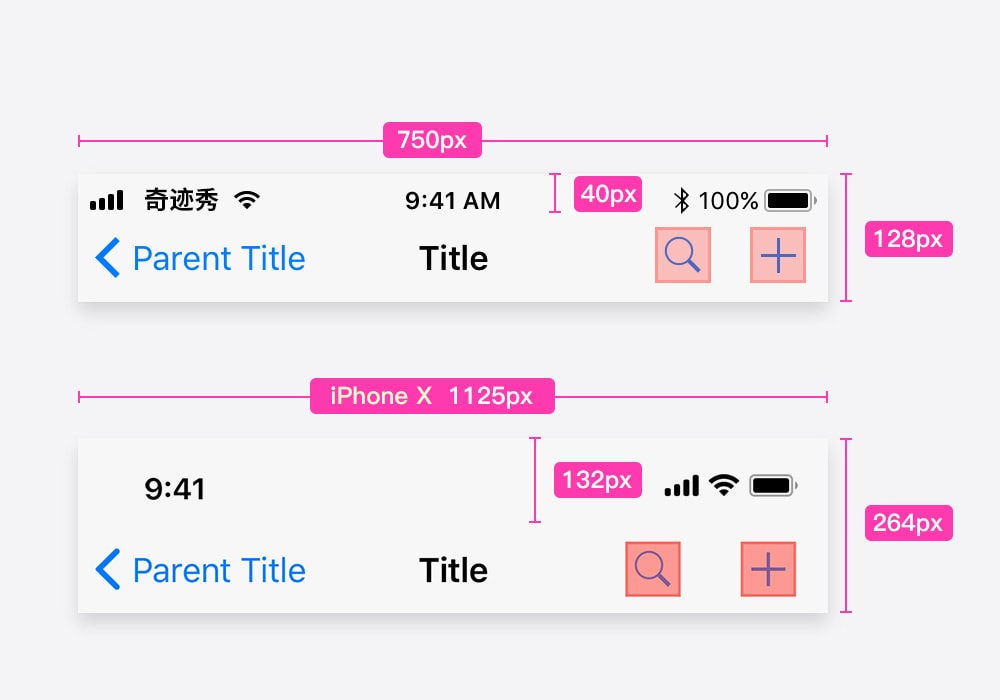

Nav Bar Title | 17 | Medium | 0.5 | Display |
Nav Bar Button | 17 | Regular | 0.5 | Display |
Search Bar | 13.5 | Regular | 0 | Text |

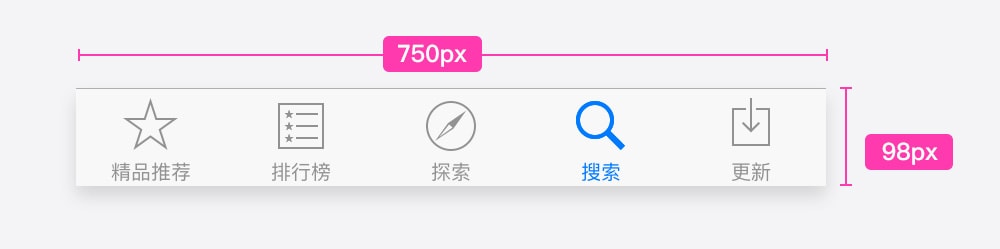

Tab Bar Button | 10 | Regular | 0.1 | Text |
Table Header | 12.5 | Regular | 0.25 | Text |
Table Row | 16.5 | Regular | 0 | Text |
Table Row Subline | 12 | Regular | 0 | Text |
Table Footer | 12.5 | Regular | 0.2 | Text |

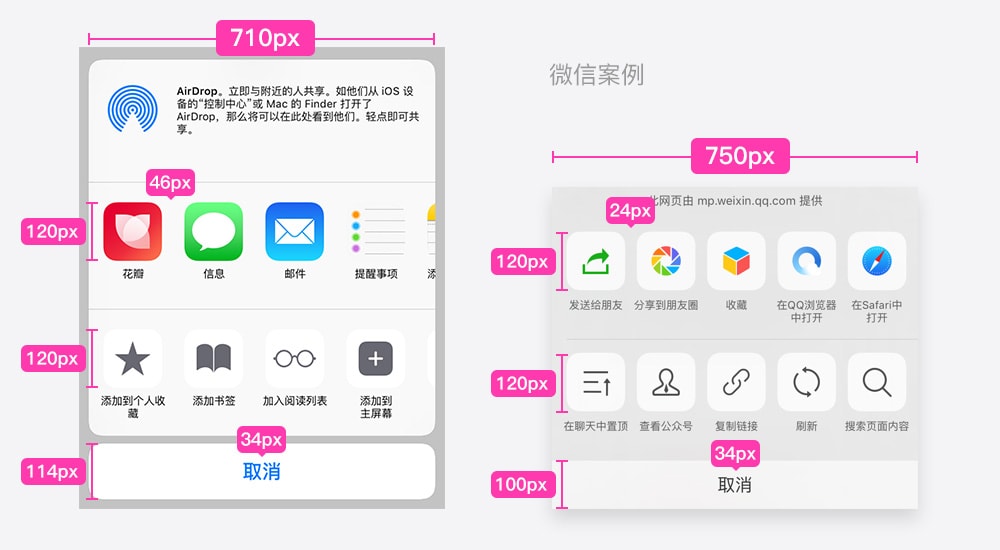

Action Sheets | 20 | Regular / Medium | 0.5 | Display |

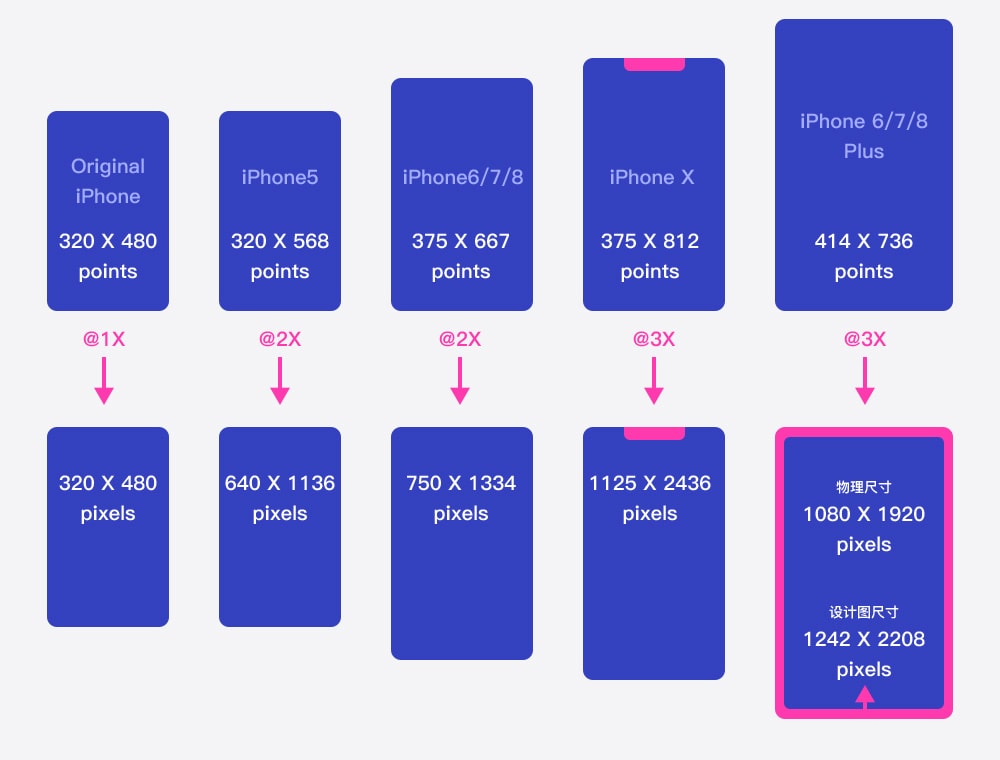

点和像素 Points and Pixels
图标 Icon
应用图标 App Icon
设备名称 | 应用图标 | App Store图标 | Spotlight图标 | 设置图标 |
---|---|---|---|---|
iPhone X, 8+, 7+, 6s+, 6s | 180 x 180 px | 1024 x 1024 px | 120 x 120 px | 87 x 87 px |
iPhone X, 8, 7, 6s, 6, SE,5s, 5c, 5, 4s, 4 |
120 x 120 px | 1024 x 1024 px | 80 x 80 px | 58 x 58 px |
iPhone 1, 3G, 3GS | 57 x 57 px | 1024 x 1024 px | 29 x 29 px | 29 x 29 px |
iPad Pro 12.9, 10.5 | 167 x 167 px | 1024 x 1024 px | 80 x 80 px | 58 x 58 px |
iPad Air 1 & 2, Mini 2 & 4, 3 & 4 |
152 x 152 px | 1024 x 1024 px | 80 x 80 px | 58 x 58 px |
iPad 1, 2, Mini 1 | 76 x 76 px px | 1024 x 1024 px | 40 x 40 px | 29 x 29 px |
自定义图标 Custom Icons
设备名称 | 导航栏和工具栏图标尺寸 | 标签栏图标尺寸 |
---|---|---|
iPhone 8+, 7+, 6+, 6s+ | 66 x 66 px | 75 x 75 px 最大144 x 96 px |
iPhone 8, 7, 6s, 6, SE | 44 x 44 px | 50 x 50 px 最大96 x 64 px |
iPad Pro, iPad, iPad mini | 44 x 44 px | 50 x 50 px 最大96 x 64 px |

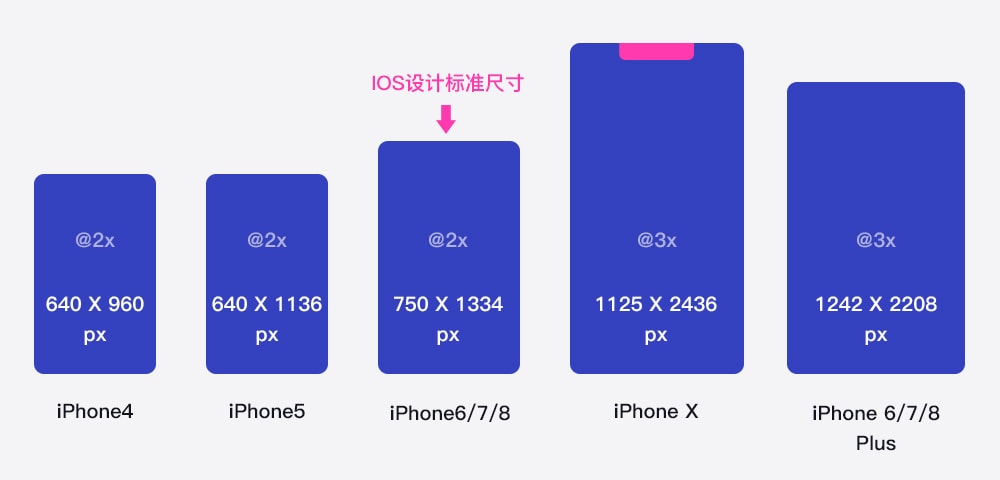

分辨率和显示规格 Resolutions and Display
设备名称 | 屏幕尺寸 | PPI | Asset | 竖屏点(point) | 竖屏分辨率(px) |
---|---|---|---|---|---|
iPhone X | 5.8 in | 458 | @3x | 375 x 812 | 1125 x 2436 |
iPhone 8+, 7+, 6s+, 6+ | 5.5 in | 401 | @3x | 414 x 736 | 1242 x 2208 |
iPhone 8, 7, 6s, 6 | 4.7 in | 326 | @2x | 375 x 667 | 750 x 1334 |
iPhone SE, 5, 5S, 5C | 4.0 in | 326 | @2x | 320 x 568 | 640 x 1136 |
iPhone 4, 4S | 3.5 in | 326 | @2x | 320 x 480 | 640 x 960 |
iPhone 1, 3G, 3GS | 3.5 in | 163 | @1x | 320 x 480 | 320 x 480 |
iPad Pro 12.9 | 12.9 in | 264 | @2x | 1024 x 1366 | 2048 x 2732 |
iPad Pro 10.5 | 10.5 in | 264 | @2x | 834 x 1112 | 1668 x 2224 |
iPad Pro, iPad Air 2, Retina iPad | 9.7 in | 264 | @2x | 768 x 1024 | 1536 x 2048 |
iPad Mini 4, iPad Mini 2 | 7.9 in | 326 | @2x | 768 x 1024 | 1536 x 2048 |
iPad 1, 2 | 9.7 in | 132 | @1x | 768 x 1024 | 768 x 1024 |
